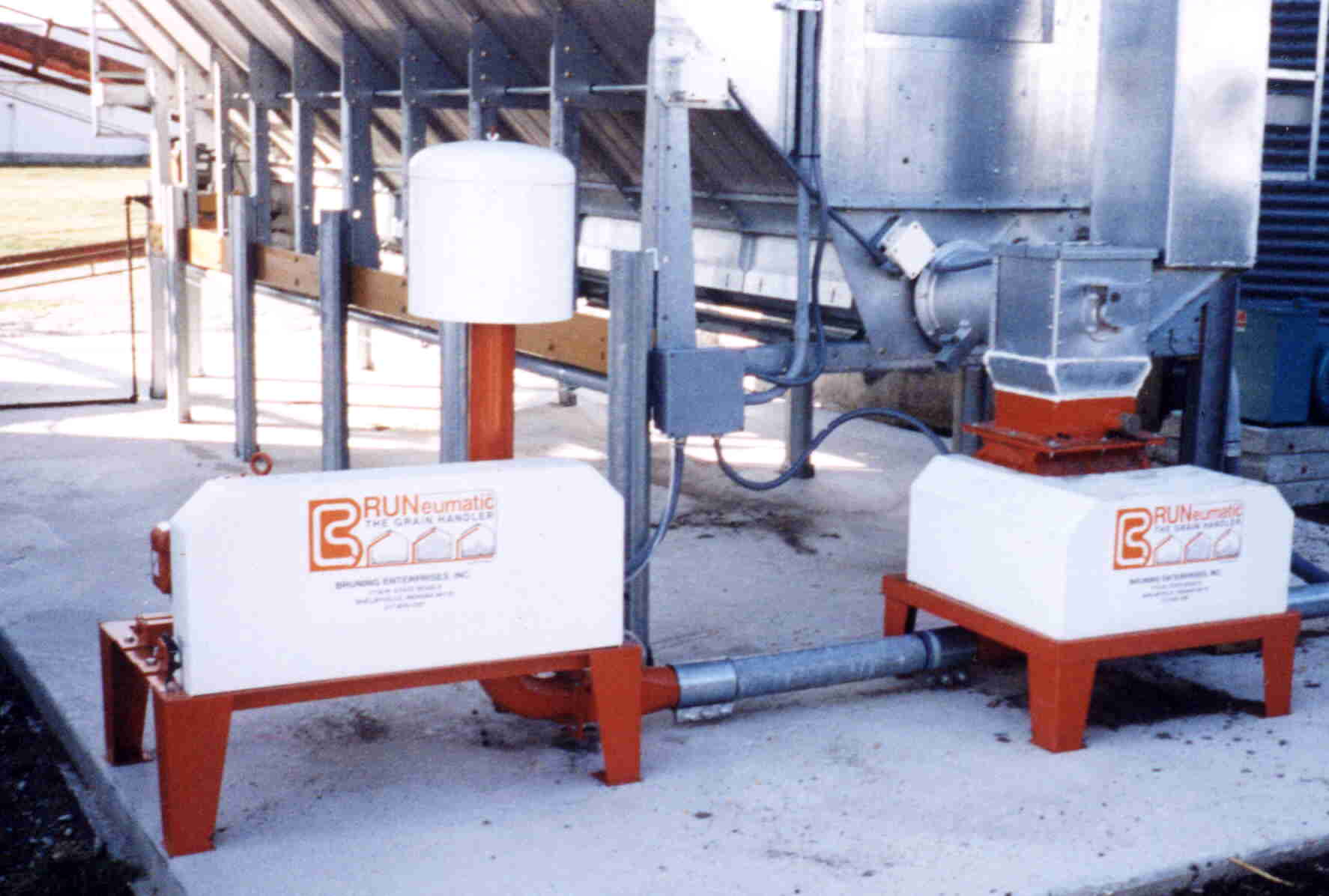

BRUNeumatic Air Systems includes: Pump, Rotary Airlock, Drives, and Motors mounted on frames, ready for installation, Factory wired electrical control panel for wall mounting.
Specifications
Model Number | Size | Bu/Hr* | Pump HP | Elect. Phase |
310S-R | 3" | 400 | 10 | Single |
310T-R | 3" | 400 | 10 | Three |
415S-R | 4" | 700 | 15 | Three |
415T-R | 4" | 700 | 15 | Three |
4275S-R | 4" | 700 | 2-7.5 | Single |
5210S-R | 5" | 1200 | 2-10 | Single |
510T-R | 5" | 1200 | 20 | Three |
530TH-M | 5" | 1500 | 30 | Three |
640T-M | 6" | 1800 | 40 | Three |
650T-M | 6" | 2000 | 50 | Three |
|
